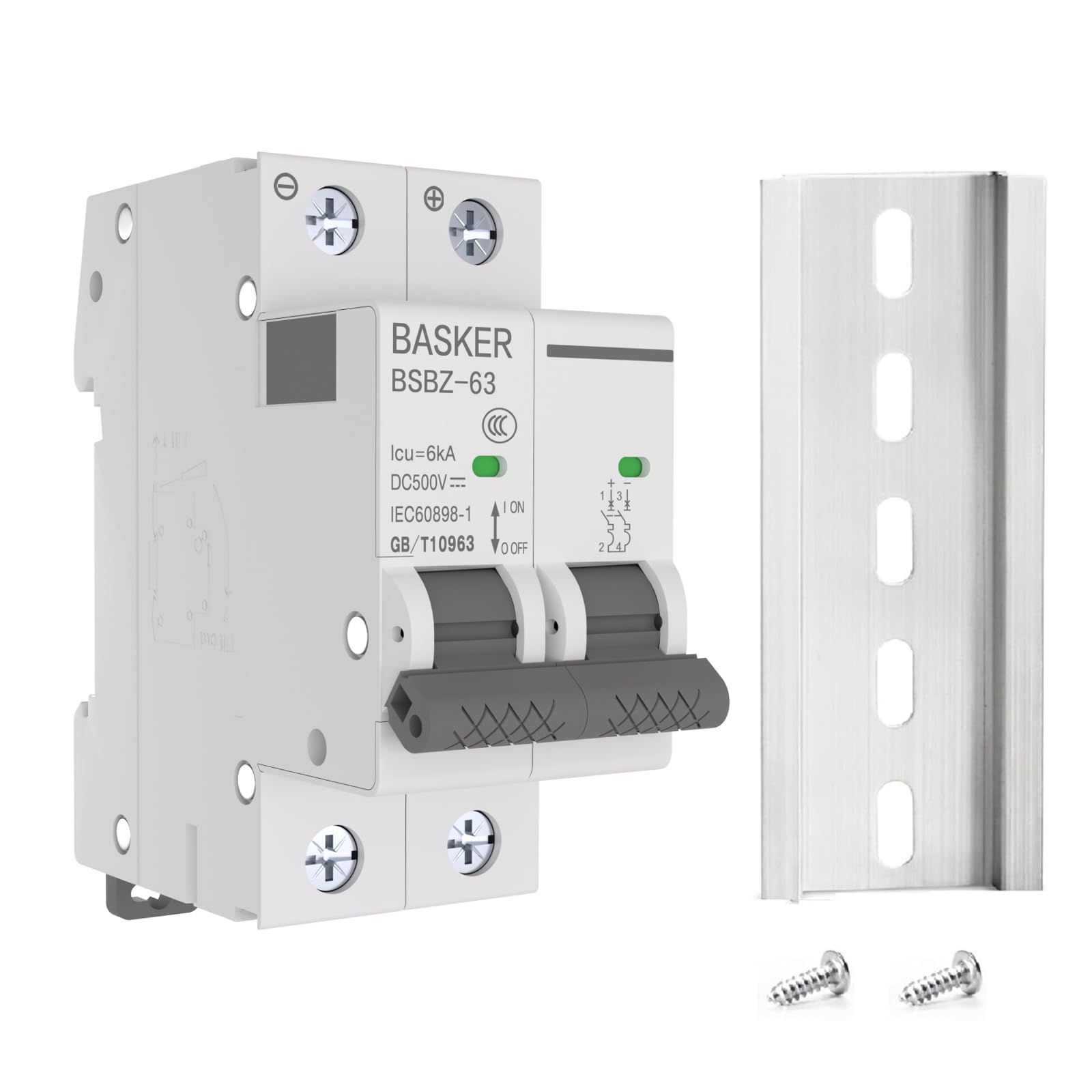

BASKER DC Circuit Breaker, 16 Amp 2 Poles 500V Solar Disconnect Switch for Solar PV System Solar Panels Grid System,Thermal Magnetic Trip,DIN Rail Mount, DC Breaker MCB (16A)
Description
⚡ Power up your solar safety with instant, reliable DC protection!

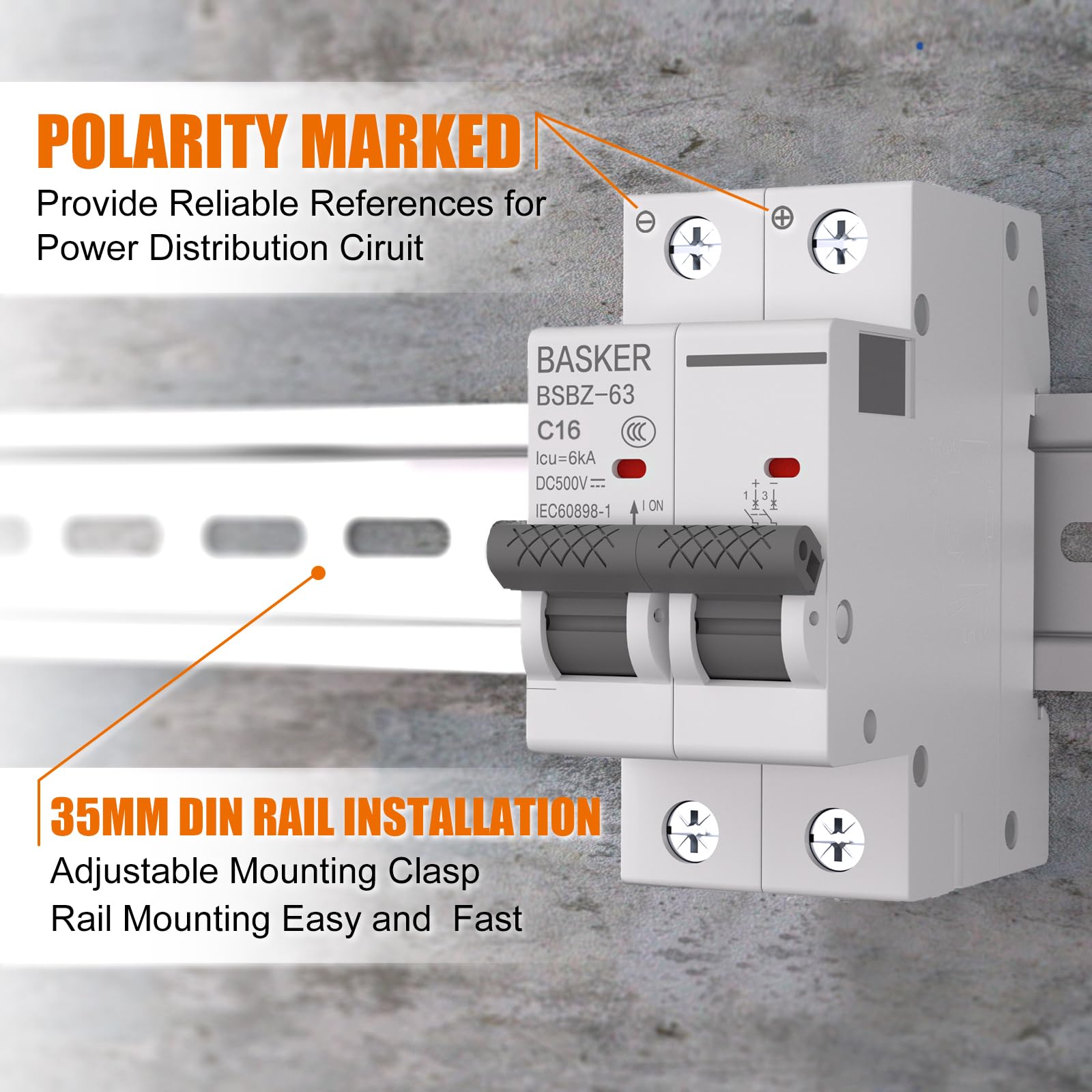

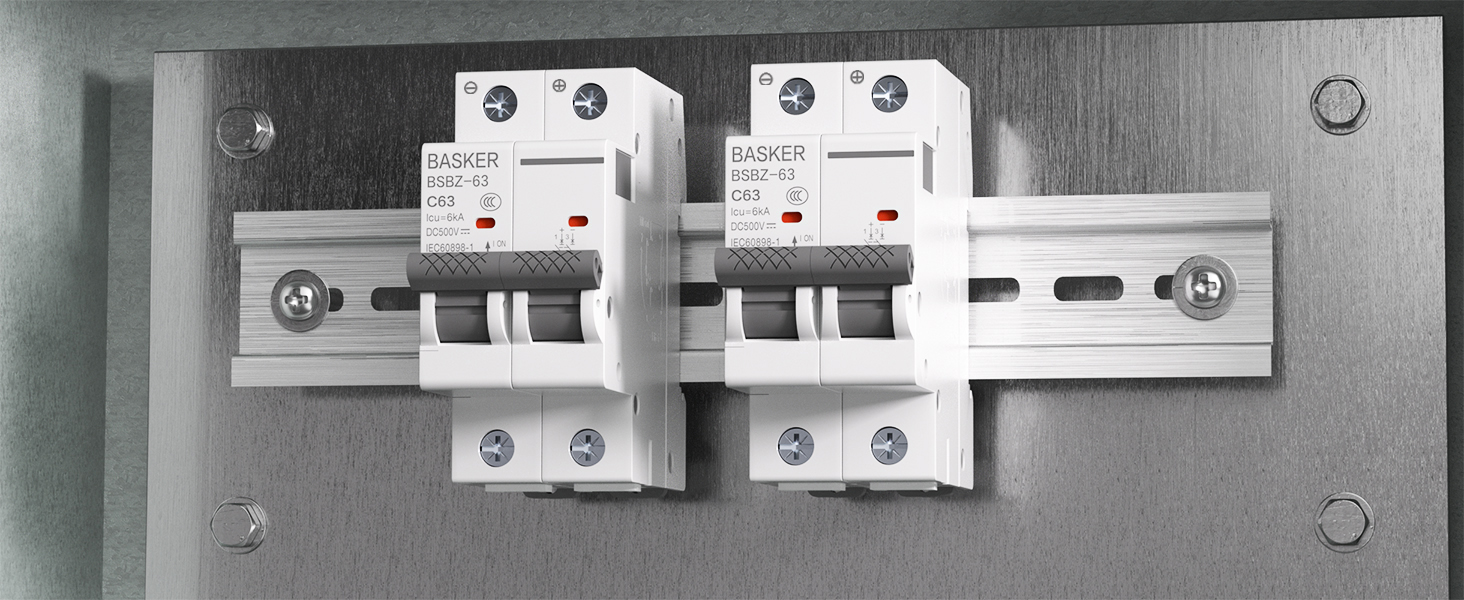

- COMPACT DIN RAIL DESIGN - Space-saving form factor integrates seamlessly into your electrical panel.

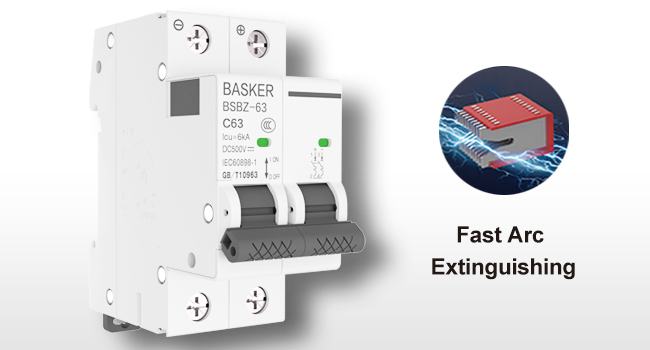

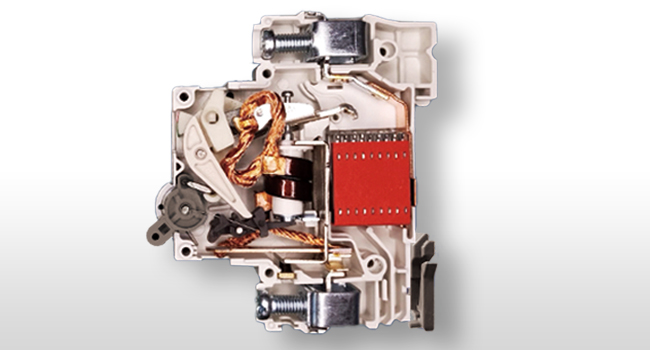

- ADVANCED ARC EXTINGUISHING - Magnetic arc suppression ensures reliable DC interruption where others fail.
- UNIVERSAL DC COMPATIBILITY - Optimized for solar PV, ship power, and other DC systems—versatility meets safety.

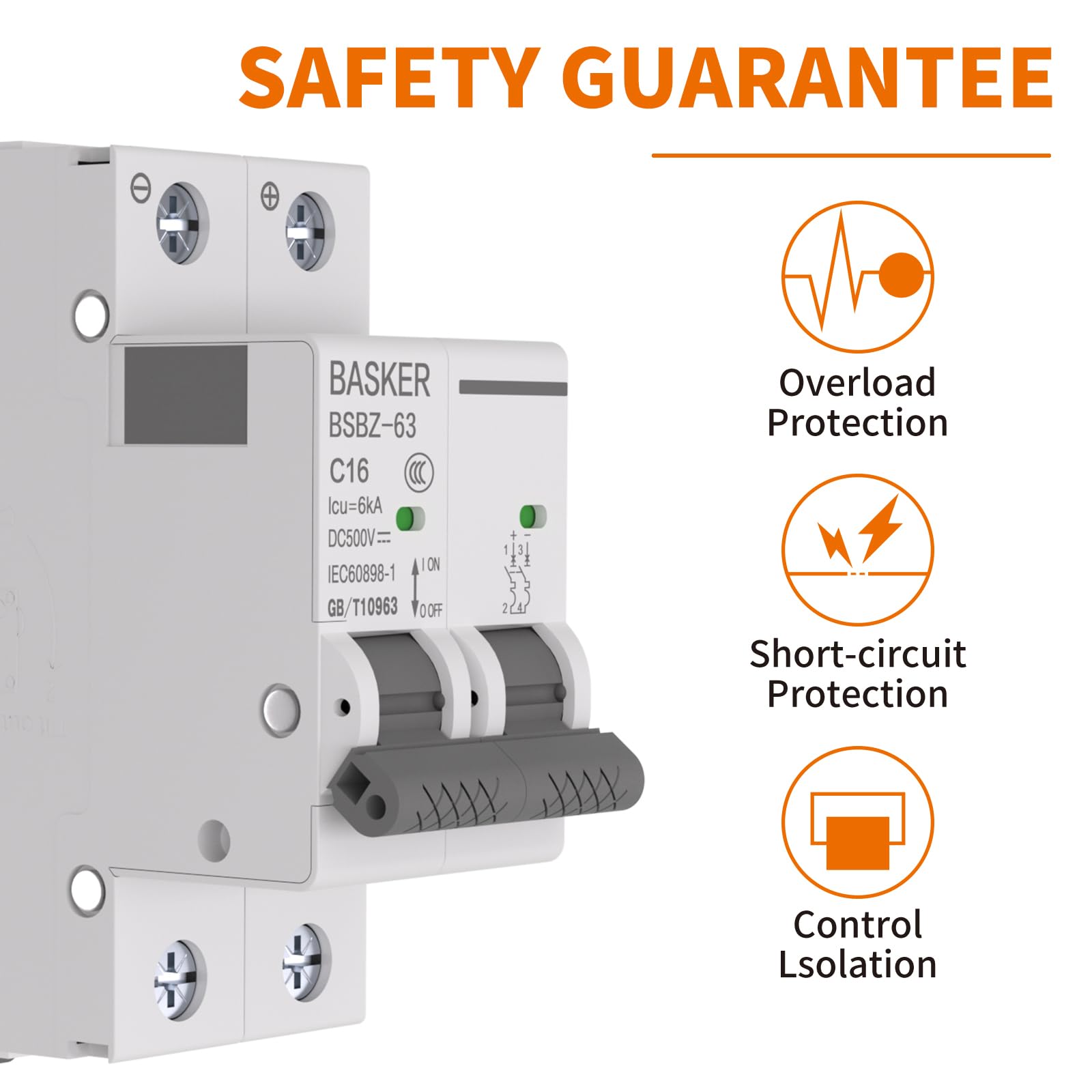

- INSTANT ELECTROMAGNETIC TRIP - Fast-acting protection against short circuits to safeguard your solar setup.

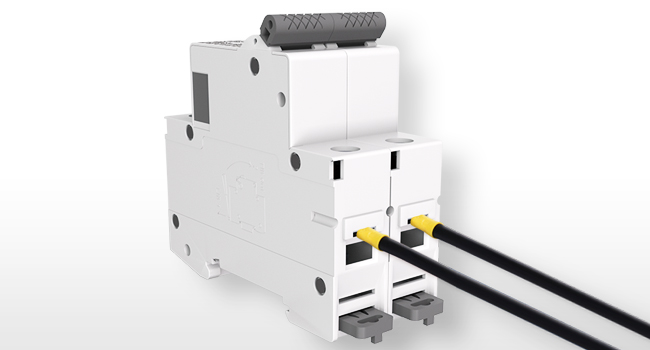

- TOOL FREE SCREW CLAMP WIRING - Simplifies installation and maintenance for busy professionals.
The BASKER DC Circuit Breaker (16A, 2 Poles, 500V) is a robust solar disconnect switch designed for high-performance DC power systems. Featuring a fast electromagnetic trip and magnetic arc extinguishing technology, it ensures immediate protection against overloads and short circuits. Its compact DIN rail mount and screw clamp wiring make installation effortless, ideal for solar PV and other DC applications.
Specifications
| Manufacturer | BASKER |
| Part Number | BSBZ-63 |
| Item Weight | 6.4 ounces |
| Package Dimensions | 10 x 3.15 x 2.13 inches |
| Item model number | BSBZ-63 |
| Size | 16Amp |
| Color | White |
| Pattern | 16Amp |
| Power Source | dc |
| Voltage | 500 Volts |
| Item Package Quantity | 1 |
| Mounting Type | DIN Rail Mount |
| Included Components | 1 x DC miniature circuit breaker, 1 x DIN rail, 2 x screws |
| Batteries Included? | No |
| Batteries Required? | No |
Reviews
R**N
Works great
If your building a solar array you need one of these.
R**S
Well built Solar Disconnect Switch
I put 2 of these solar disconnect switches on my system. handles my 18 solar panels that has 2 sets of lines in connected to 600 amp hour lipo4 battery bank 48 volt that powers a 10k hybrid inverter. These solar disconnect switches handle the power with ease and were very easy to install. They are solid and the quality is outstanding. If you spent a ton of money installing solar and buying the equipment like I did, then do yourself a favor and install these disconnect switches on your system.
J**B
Perfect for solar panel cutoff
Used only for power cutoff for solar panels. Mounting bracket is kind of flimsy
G**
Un gran producto, y muy buen precio
Es de muy buena calidad, cumple con las expectativas
A**R
Breaker works fine as for install
The breaker has largeEnough terminals to double tap ( solar cable) for surge arrester. The solar cable wires are of course a finer strand then awg.
T**T
Mounting bracket fair to low.
Breaker is fine but can slide off the mounting bracket. Need to add stops at each end of bracket.
A**R
Great
This has been working just as expected with my solar setup.
D**T
Solar success
I was using different breakers and the system kept failing. I'm using 4 breakers for my setup of 2 solar panels to the controller charger to the 2 lithium batteries and another controller charger that is on the generator side. Mostly it was the breaker between the panels and the first charger. It wouldn't charge the batteries. It took less then 20mins to replace the 4 breakers and now is charging the batteries. The quality is very good and great value for the money. I would definitely suggest these breakers
